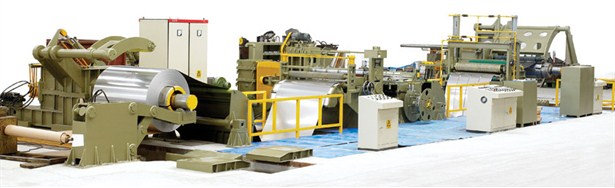

Shearing Line

It is also part of finishing line of cold rolled strip production, used for cropping the strip, trimming the strip edge, leveling, dividing the strip and stacking the sheets. The strip can be divided to the sheets at required length, or slit to the required width.

With respect to different lines and different equipment, following equipment will be arranged in the unit: uncoiler, crop shear, rotary side trimmer, tension leveler, dividing shear, electrostatic oiler, belt conveyor, magnetic belt conveyor, stacker, delivery roller table, or flying shear, slitting shear and strapping machine, etc.


Main characteristics

  • The line may be arranged with dividing shear or slitting shear and strip separator, etc depending on different requirements of the lines;
  • The equipment configuration is simple and easy in operation and maintenance;
  • VVVF speed control system for drive and friendly HMI are used in the line.

Technical data

Strip thickness: 0.2~1.5mm

Strip width: Entry: 700~1250mm         Exit: 700~1250mm

Coil inside diameter: Entry: ф610/ф508mm       Exit: ф508mm

Coil external diameter: Entry: max.ф2000mm       Exit: max.ф1500mm

Coil weight: Entry: max.22t              Exit: 6~10t

Process speed: 150~200m/min
